- RA_CUSTOMER_TRX_ALL :stores invoice header information.
- RA_CUSTOMER_TRX_LINES_ALL stores information about invoice, debit memo, credit memo, bills receivable, and commitment lines.
- The AR_PAYMENT_SCHEDULES_ALL table stores all transactions except adjustments and miscellaneous cash receipts.
- RA_CUST_TRX_LINE_GL_DIST_ALL stores accounting distribution records for all transaction lines except bills receivable.
- RA_CUSTOMERS – Customer information
- RA_CUST_TRX_TYPES_ALL – Customer Transaction Type
- AR_PAYMENT_SCHEDULES_ALL
- AR_CASH_RECEIPTS_ALL stores one record for each receipt entry
- AR_CASH_RECEIPT_HISTORY_ALL stores all of the activity that is contained for the life cycle of a receipt.
- AR_RECEIVABLE_APPLICATIONS_ALL stores all accounting entries for cash and credit memo applications.
- AR_DISTRIBUTIONS_ALL stores the accounting distributions for cash receipts, miscellaneous receipts, adjustments,credit memo applications, cash receipt applications, and bills receivable transactions.
Oracle Technical Experience and Test Cases Shared from different resource and through self leanings.
July 31, 2010
AR TABLES
July 27, 2010
Order To Cash
Order to cash normally refer to the process in which taking customer sale order via different sales channel like email, internet, sales person and then generating an invoice and collecting payment for that invoice and then receipt
Complete Order to cash cycle steps including
1. Entering the Sales Order
2. Booking the Sales Order
3. Launch Pick Release
4. Ship Confirm
5. Create Invoice

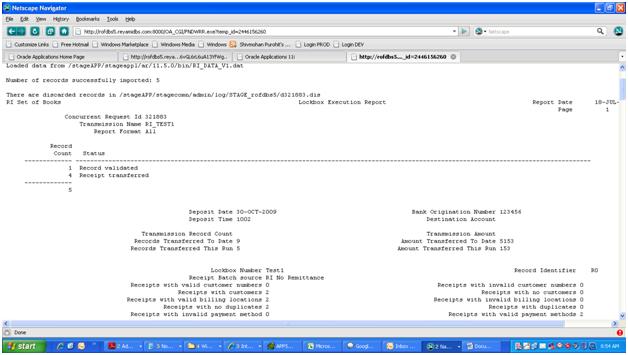

6. Create the Receipts either manually or using Auto Lockbox ( In this article we will concentrate on Manual creation)
7. Transfer to General Ledger
8. Journal Import
9. Posting
Tables:
1. OE_ORDER_HEADERS_ALL
2. OE_ORDER_LINES_ALL
3. WSH_DELIVERY_DETAILS
4. WSH_DELIVERY_ASSIGNMENTS
5. WSH_NEW-DELIVERIES
6. WSH_DELIVERY_LEGS
7. WSH_TRIP_STOPS
8. WSH_TRIPS
9. M TL_TRX_REQUEST_LINES
10. MTL_MATERIAL_TRANSACTION_TEMP
11. OE_SETS
12. OE_LINE_SETS
13. OE_LINES_ALL
14. MTL_RESERVATIONS
Procure To Pay Cycle
Procurement to pay cycle
In P2P cycle the moduled included are PO,AR,AP,CM and GL
The requirement arises from requirements for items,and company places order for items needed.
The vendor supplies the items.Once items are recieved payment will be made.That is a invoice will be raised and payment will be made to the vendor.The payment can be of cash,cheque etc.
This is governed under cash management and finally the transaction detalis will be accounted in GL.
Important Base Tables Involved are:
Requisition
po_requisition_headers_all
po_requisition_lines_all ( segment1 ========== requisition number)
po_req_distributions_all
Note: requisition_header_id is the link between po_requisition_headers_all and po_requisition_lines_all
requisition_line_id is the link between po_requisition_lines_all and po_req_distributions_all
Purchase order
po_headers_all
po_lines_all
po_distributions_all
po_line_locations_all
Note: po_header_id is the link between all these tables
Receipt
rcv_shipment_headers
rcv_shipment_lines
rcv_transactions
quality result stored in qa_results table
Note: shipment_header_id is the link between rcv_shipment_headers and rcv_shipment_lines
po_header_id is the link between rcv_shipment_headers and rcv_transaction
Invoices
ap_invoices_all
ap_invoice_distributions_all
Note: invoice_id is the link between ap_invoices_all and ap_invoice_distributions_all
Payments
ap_checks_all
ap_invoice_payments_all
ap_payment_schedules_all
Payment Reconcillation
ap_banks
ap_bank_branches
GL Transfer
gl_periods
gl_period_status
gl_set_of_books
glfv_charts_of_accounts
July 25, 2010
FORMS 3
Creating LOVs
1. Start a new module by clicking on File - New - Form.
2. Change Module’s name to TEST_LOV.
3. Set up DEPT and EMP data blocks and its relationship.
4. Click Object Navigator
Forms
LOVs and then on tool bar click Create button.
5. In the New LOV dialog box select
• New Record Group Based on the Query Below...
6. Enter the following code
SELECT distinct job
FROM emp
ORDER BY job
7. Click OK. (The hour glass will no go away)
8. Double click to open the property palette for the new LOV (under LOVs).
9. Change Name to JOB_LOV
10. Click on Column Mapping Properties (under Functional).
11. Click on More button.
12. Click Column Name JOB then in Return Item box type Emp.JOB. This specifies the destination into which the LOV will place the job value.
13. Enter a display width of 50. Click OK
14. Change Object Navigator
Record Groups
LOV name to JOB_LOV
15. On Layout Editor double click on JOB to bring up property palette and set List of Values to JOB_LOV
16. Set Validate from List to YES.
17. Save file under c:/orant/Forms50/Class/TEST_LOV.FMB
18. Run form.
• LOV, using auto-reduction, to populate a job if it finds one job that matches the first character that you typed. Otherwise a pup-up window open if more than on job are found or invalid job is entered.
1. Start a new module by clicking on File - New - Form.
2. Change Module’s name to TEST_LOV.
3. Set up DEPT and EMP data blocks and its relationship.
4. Click Object Navigator
Forms
LOVs and then on tool bar click Create button.
5. In the New LOV dialog box select
• New Record Group Based on the Query Below...
6. Enter the following code
SELECT distinct job
FROM emp
ORDER BY job
7. Click OK. (The hour glass will no go away)
8. Double click to open the property palette for the new LOV (under LOVs).
9. Change Name to JOB_LOV
10. Click on Column Mapping Properties (under Functional).
11. Click on More button.
12. Click Column Name JOB then in Return Item box type Emp.JOB. This specifies the destination into which the LOV will place the job value.
13. Enter a display width of 50. Click OK
14. Change Object Navigator
Record Groups
LOV name to JOB_LOV
15. On Layout Editor double click on JOB to bring up property palette and set List of Values to JOB_LOV
16. Set Validate from List to YES.
17. Save file under c:/orant/Forms50/Class/TEST_LOV.FMB
18. Run form.
• LOV, using auto-reduction, to populate a job if it finds one job that matches the first character that you typed. Otherwise a pup-up window open if more than on job are found or invalid job is entered.
July 24, 2010
Forms-2
Practice 11 - Create Data Blocks with Relationships
Creating Master Block
================
1. Right click on Object Navigator | Forms | Data Blocks then select
Data Block Wizard.
2. At Data Block Wizard - select
Table or View
Then click Next
3. Enter DEPT in the edit box of Table or view.
Then click Refresh
Click select all to database items
Then click Next (Enforce Data Integrity, Content Canvas, Single Record, Form Style, No Scrollbar)
4. Complete creating the Dept Block
5. Detail Block Creation
6. Create a new data block
7. Select the Table (ex. EMP), enforce data integrity
8. Select
9. Click Create Relationship (Auto create relatioship should be checked)
Click OK for the next dialog box.
10. Use the same canvas used by Master block, Should be Multi-Record (in most cases), Style should be Tabular(to display multiple records), Scrollbar should be displayed)
11. Use the default Width and Height
Then click Next
12. Select
Form
Then click Next
13. Frame Title: DEPARTMENT-EMPLOYEE DETAILS
Records Displayed: 1
Distance Between Records: 0
Then click Next
Then click Finish
14. Compile and Run Form
Forms
Practicals:
Single Table Maintenance - (Create all the single record maintenance forms in your project)
Practice 1 - Create a Data Block Using the Data Block Wizard
1. Launching the Form Builder
· Start - Programs - Developer 2000 R2.1 - Form Builder.
2. At Welcome to the Form Builder - select
· Use the Data Block Wizard
Then click OK
3. At Data Block Wizard - select
· Table or View
Then click Next
4. Click Browse…
Connect to database SCOTT / TIGER
Then click Connect
Click OK at the next dialog box.
At select DEPT then click OK
Click >> select all to database items then click Next
(Enforce Data Integrity, Content Canvas, Single Record, Form Style, No Scrollbar)
5. Select
· Just create the data block
Then click Finish
6. Change MODULE1 to DEPT
Practice 2 - Create and Modifying Layouts Using the Layout Wizard
1. Right click on Object Navigator | Forms | Data Blocks | DEPT
2. Select Layout Wizard
3. Select Content type
Then click Next
4. Click >> select all to Display items
Then click Next
5. Use the default Width and Height
Then click Next
6. Select
· Form
Then click Next
7. Frame Title: DEPT
Records Displayed: 1
Distance Between Records: 0
Then click Next
Then click Finish
8. Compile and Save the file in D:/Oracle_Dev/TEST_DEPT
9. Run Form
10. Click Execute Query button to populate data into data block.
11. Click Next / Previous button for navigation.
12. Exit Form
Practice 3 - Modifying Layouts Using the Layout Wizard
1. Right click on Object Navigator | Forms | Canvases | Graphics | FRAME3
2. Select Layout Wizard
3. Remove DEPTNO from Displayed items to Available Items
Then click Next
4. Use the default Width and Height
Then click Next
5. Select
· Tabular
Then click Next
6. Frame Title: DEPT
Records Displayed: 5
Distance Between Records: 0
Then click Next
Then click Finish
7. Compile and Run Form
8. Exit CANVAS2
Restricting Queries with SQL statements
Practice 5 - Restricting queries with field-level Criteria
1. Click on Enter Query Button.
2. Move cursor to Sal
3. Type:
:Salary
4. Click Execute Query Button.
5. Type the following in the pop up dialog window.
:Salary between 1200 and 3000
6. Click OK.
Inserting, Updating and Deleting Records
Practice 6 - using Form to update records
1. Click on Execute Query Button.
2. Modify any record.
3. Click Save Button.
Practice 7 - using Form to insert records
1. Click on Insert Record Button.
2. Enter any data in the blank area.
3. Click Save Button.
Practice 8 - using Form to delete records
1. Click on Execute Query Button.
2. Navigate to any that you wont to delete.
3. Click on Delete Record Button.
4. Click Save Button.
Practice 10 - Creating a hints
1. Right click on EXIT button
2. Select Property Palette
3. Find Hint under Help section.
4. Type Click to Exit This Program
5. Exit and run.
Practice 11 - Creating a ToolTips
1. Right click on EXIT button
2. Select Property Palette
3. Find ToolTip under Help section.
4. Type Exit
5. Exit and run.
July 22, 2010
Attached Documents
Fnd documents can be accessed using Pk_value defined in FND_ATTACHED_DOCUMENTS table.
this will refer to primary key of the refering table.E.g,if po_headers_all then po_hearder_id will be the pk_value1.
sample code to find out pk value:
select * from fnd_document_entities e,fnd_document_entities_tl t,
fnd_attached_documents fad,po_LINES_all ph,FND_DOCUMENTS_SHORT_TEXT FSL
where e.DOCUMENT_ENTITY_ID=t.DOCUMENT_ENTITY_ID and E.table_name='PO_LINES' and e.DATA_OBJECT_CODE='PO_LINES' and fad.ENTITY_NAME=e.ENTITY_NAME and ph.PO_LINE_ID=fad.PK1_VALUE
Base tables for Documents are
fnd_document_datatypes FND_DOCUMENTS_SHORT_TEXT
fnd_document_entities_tl
fnd_documents_tl
fnd_documents
fnd_document_categories_tl
fnd_doc_category_usages
fnd_attachment_functions
fnd_attached_documents
FND_DOCUMENTS_LONG_TEXT
this will refer to primary key of the refering table.E.g,if po_headers_all then po_hearder_id will be the pk_value1.
sample code to find out pk value:
select * from fnd_document_entities e,fnd_document_entities_tl t,
fnd_attached_documents fad,po_LINES_all ph,FND_DOCUMENTS_SHORT_TEXT FSL
where e.DOCUMENT_ENTITY_ID=t.DOCUMENT_ENTITY_ID and E.table_name='PO_LINES' and e.DATA_OBJECT_CODE='PO_LINES' and fad.ENTITY_NAME=e.ENTITY_NAME and ph.PO_LINE_ID=fad.PK1_VALUE
Base tables for Documents are
fnd_document_datatypes FND_DOCUMENTS_SHORT_TEXT
fnd_document_entities_tl
fnd_documents_tl
fnd_documents
fnd_document_categories_tl
fnd_doc_category_usages
fnd_attachment_functions
fnd_attached_documents
FND_DOCUMENTS_LONG_TEXT
July 19, 2010
Functions
Example of creating a function and placing it in our program.
Used to avoid repeated records in reports.Where it fetched different vales for same fields.
CREATE OR REPLACE FUNCTION xx_salesname_proj (p_project_id IN NUMBER)
RETURN VARCHAR2
IS
v_full_name VARCHAR2 (240);
v_final_name VARCHAR2 (240);
CURSOR c1 (r_project_id NUMBER)
IS
SELECT DISTINCT full_name
FROM per_all_people_f
WHERE person_id IN (
SELECT person_id
FROM pa_credit_receivers pcr, pa_projects_all pp
WHERE pcr.project_id = pp.project_id
AND pp.project_id = r_project_id);
v_index NUMBER;
BEGIN
v_full_name := '';
v_final_name := '';
v_index := 0;
OPEN c1 (p_project_id);
LOOP
FETCH c1
INTO v_full_name;
EXIT WHEN c1%NOTFOUND;
DBMS_OUTPUT.put_line (v_full_name);
v_index := v_index + 1;
IF v_index = 1
THEN
v_final_name := v_full_name;
ELSE
v_final_name := v_final_name ','
v_full_name;
END IF;
END LOOP;
CLOSE c1;
RETURN v_final_name;
END;
/
In our program call from query
xxri_salesname_proj (pp.project_id) sales_person_name
Used to avoid repeated records in reports.Where it fetched different vales for same fields.
CREATE OR REPLACE FUNCTION xx_salesname_proj (p_project_id IN NUMBER)
RETURN VARCHAR2
IS
v_full_name VARCHAR2 (240);
v_final_name VARCHAR2 (240);
CURSOR c1 (r_project_id NUMBER)
IS
SELECT DISTINCT full_name
FROM per_all_people_f
WHERE person_id IN (
SELECT person_id
FROM pa_credit_receivers pcr, pa_projects_all pp
WHERE pcr.project_id = pp.project_id
AND pp.project_id = r_project_id);
v_index NUMBER;
BEGIN
v_full_name := '';
v_final_name := '';
v_index := 0;
OPEN c1 (p_project_id);
LOOP
FETCH c1
INTO v_full_name;
EXIT WHEN c1%NOTFOUND;
DBMS_OUTPUT.put_line (v_full_name);
v_index := v_index + 1;
IF v_index = 1
THEN
v_final_name := v_full_name;
ELSE
v_final_name := v_final_name ','
v_full_name;
END IF;
END LOOP;
CLOSE c1;
RETURN v_final_name;
END;
/
In our program call from query
xxri_salesname_proj (pp.project_id) sales_person_name
AR LOCKBOX
AutoLockbox automated tool used to receipts which are sent to bank directly.
It Validates data before transferring then to recievables.
Steps Performed by AR Lockbox:
Make required Functional setups for defining Lockbox.
1.Create Transmission format.
APPEND
-- Type R2- Overflow Receipt
INTO TABLE AR_PAYMENTS_INTERFACE_ALL
WHEN RECORD_TYPE = ’R2’
(STATUS CONSTANT ’AR_PLB_NEW_RECORD’,
RECORD_TYPE POSITION(01:02) CHAR,
LOCKBOX_NUMBER POSITION(03:05) CHAR,
INVOICE1 POSITION(06:19) CHAR,
AMOUNT_APPLIED1 POSITION(20:30) CHAR,
OVERFLOW_SEQUENCE POSITION(31:34) CHAR,
OVERFLOW_INDICATOR POSITION(35:35) CHAR,
ITEM_NUMBER POSITION(36:38) CHAR,
CURRENCY_CODE POSITION(39:41) CHAR)
-- Type R1 - Payment
INTO TABLE AR_PAYMENTS_INTERFACE_ALL
WHEN RECORD_TYPE = ’R1’
(STATUS CONSTANT ’AR_PLB_NEW_RECORD’,
RECORD_TYPE POSITION(01:02) CHAR,
LOCKBOX_NUMBER POSITION(03:05) CHAR,
BATCH_NAME POSITION(06:08) CHAR,
TRANSIT_ROUTING_NUMBER POSITION(09:18) CHAR,
ACCOUNT POSITION(19:36) CHAR,
CHECK_NUMBER POSITION(37:46) CHAR,
REMITTANCE_AMOUNT POSITION(47:56) CHAR,
DEPOSIT_DATE POSITION(57:62) DATE ’RRMMDD’,
ITEM_NUMBER POSITION(63:65) CHAR,
CURRENCY_CODE POSITION(66:68) CHAR,
DEPOSIT_TIME POSITION(69:72) CHAR)
-- Type R0 - Lockbox Header
INTO TABLE AR_PAYMENTS_INTERFACE_ALL
WHEN RECORD_TYPE = ’R0’
(STATUS CONSTANT ’AR_PLB_NEW_RECORD’,
RECORD_TYPE POSITION(01:02) CHAR,
LOCKBOX_NUMBER POSITION(03:05) CHAR,
ORIGINATION POSITION(06:14) CHAR)
R0P14043000096
R1P1400002130937 612955 20002914640005587025990901018USD2003
R2P142424068 0000102900000010018USD
3.Place the control file in AR_Top bin directory.
Note: Give the control file name without extension and path.
5.sumbit the lockbox interface program.
6.the output will have the details of transferred recepits.
Interface tables involved are
WITHOUT vALIDATION
AR_PAYMENTS_INTERFACE_ALL
FOR VALIDATION
AR_INTERIM_CASH_RECEIPTS_ALL and
AR_INTERIM_CASH_RCPT_LINES_ALL
BASE TABLES
AR_CASH_RECEIPTS_ALL
AR_CASH_RECEIPT_HISTORY_ALL
AR_DISTRIBUTIONS_ALL
AR_RECEIVABLE_APPLICATIONS_ALL
AR_PAYMENT_SCHEDULES_ALL
It Validates data before transferring then to recievables.
Steps Performed by AR Lockbox:
Make required Functional setups for defining Lockbox.
1.Create Transmission format.
Give Transmission Name
LOCKBOX HEADER,RECIPET,OVERFLOW RECIPET
LOCKBOX HEADER with identifier:
SAMPLE CONTROL FILE:
LOAD DATA
APPEND
-- Type R2- Overflow Receipt
INTO TABLE AR_PAYMENTS_INTERFACE_ALL
WHEN RECORD_TYPE = ’R2’
(STATUS CONSTANT ’AR_PLB_NEW_RECORD’,
RECORD_TYPE POSITION(01:02) CHAR,
LOCKBOX_NUMBER POSITION(03:05) CHAR,
INVOICE1 POSITION(06:19) CHAR,
AMOUNT_APPLIED1 POSITION(20:30) CHAR,
OVERFLOW_SEQUENCE POSITION(31:34) CHAR,
OVERFLOW_INDICATOR POSITION(35:35) CHAR,
ITEM_NUMBER POSITION(36:38) CHAR,
CURRENCY_CODE POSITION(39:41) CHAR)
-- Type R1 - Payment
INTO TABLE AR_PAYMENTS_INTERFACE_ALL
WHEN RECORD_TYPE = ’R1’
(STATUS CONSTANT ’AR_PLB_NEW_RECORD’,
RECORD_TYPE POSITION(01:02) CHAR,
LOCKBOX_NUMBER POSITION(03:05) CHAR,
BATCH_NAME POSITION(06:08) CHAR,
TRANSIT_ROUTING_NUMBER POSITION(09:18) CHAR,
ACCOUNT POSITION(19:36) CHAR,
CHECK_NUMBER POSITION(37:46) CHAR,
REMITTANCE_AMOUNT POSITION(47:56) CHAR,
DEPOSIT_DATE POSITION(57:62) DATE ’RRMMDD’,
ITEM_NUMBER POSITION(63:65) CHAR,
CURRENCY_CODE POSITION(66:68) CHAR,
DEPOSIT_TIME POSITION(69:72) CHAR)
-- Type R0 - Lockbox Header
INTO TABLE AR_PAYMENTS_INTERFACE_ALL
WHEN RECORD_TYPE = ’R0’
(STATUS CONSTANT ’AR_PLB_NEW_RECORD’,
RECORD_TYPE POSITION(01:02) CHAR,
LOCKBOX_NUMBER POSITION(03:05) CHAR,
ORIGINATION POSITION(06:14) CHAR)
2.Create a loader file(Flat File) in specified format.
Sample Data File:
R0P14043000096
R1P1400002130937 612955 20002914640005587025990901018USD2003
R2P142424068 0000102900000010018USD
3.Place the control file in AR_Top bin directory.
4.In AR run the interface program lockbox with transmission name,control file,data file with path.
5.sumbit for validation(to get the receipts transferred to base tables.
6.the output will have the details of transferred recepits.
Interface tables involved are
WITHOUT vALIDATION
AR_PAYMENTS_INTERFACE_ALL
FOR VALIDATION
AR_INTERIM_CASH_RECEIPTS_ALL and
AR_INTERIM_CASH_RCPT_LINES_ALL
BASE TABLES
AR_CASH_RECEIPTS_ALL
AR_CASH_RECEIPT_HISTORY_ALL
AR_DISTRIBUTIONS_ALL
AR_RECEIVABLE_APPLICATIONS_ALL
AR_PAYMENT_SCHEDULES_ALL
Subscribe to:
Posts (Atom)
COALESCE-SQL
Coalesce- return the null values from the expression. It works similar to a case statement where if expression 1 is false then goes to expr...
-
In HRMS we do use date with timestamp for EIT ans SIT segments. To change the format od the date we can use fnd_date . canonical_to_date ...
-
Converstion API Table Organization hr_organization_api.create_hr_organization hr_all_organization...
-
Create the concurrent program.to move you need to extract the ldt and upload the same through the script for nay other instance.Below have ...
